BC141-16-T | COMSET Semiconductors

Name: Bipolar junction transistor, PNP, 1 A, 60 V, THT, TO-39, BC141-16-T
Brand: COMSET Semiconductors
SKU: 11S3800
Price: 1.71 EUR
Availability: InStock

Bipolar junction transistor, PNP, 1 A, 60 V, THT, TO-39, BC141-16-T

Order No.: 11S3800

EAN: 4099879026507

MPN:

BC141-16-T

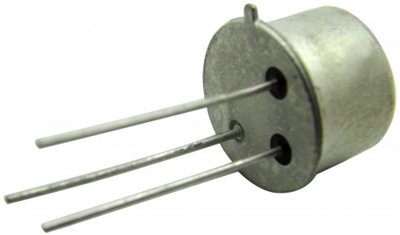

Image may differ

Key Specification:

Assembly THT

Enclosure TO-39

Version PNP

Saturation voltage 600 mV

Collector current 1 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.7136 € *

Available: 99 pcs.

Leadtime: On Request **

Total Price:

1.71 € *

Price list

Quantity

Price per unit*

1 pcs.

1.7136 €

10 pcs.

1.0710 €

50 pcs.

0.9401 €

250 pcs.

0.8211 €

1000 pcs.

0.7140 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

General purpose transistor, BC141-16-T, COMSET

The BC141-16-T is a silicon planar epitaxial NPN transistor mounted in TO-18 metal package. It is particulary designed for audio amplifiers and switching applications up to 1 A.

Features

Compliance to RoHS

Technical specifications

	Version	PNP
	Enclosure	TO-39
	max. operating temperature	175 °C
	max.voltage between collector and base Vcbo	100 V
	max.voltage between collector and emitter Vceo	60 V
	min. operating temperature	-55 °C
	Assembly	THT
	Rated current	1 A
	Saturation voltage	600 mV
	Transit frequency fTmin	50 MHz
	Power dissipation	3.7 W
	Collector current	1 A
	Max DC amplification	250 mA
	Min DC gain	100 mA
