BDV67C-T | COMSET Semiconductors

Name: Bipolar junction transistor, NPN, 16 A, 120 V, THT, TO-3PN, BDV67C-T
Brand: COMSET Semiconductors
SKU: 15S5020
Price: 4.90 EUR
Availability: OutOfStock

Bipolar junction transistor, NPN, 16 A, 120 V, THT, TO-3PN, BDV67C-T

Order No.: 15S5020

EAN: 4099879028549

MPN:

BDV67C-T

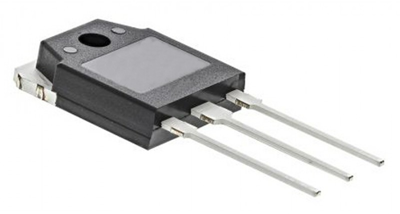

Image may differ

Key Specification:

Montage THT

Gehäuse TO-3PN

Ausführung NPN

Sättigungsspannung 2 V

Kollektorstrom 16 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.9028 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

4.90 € *

Price list

Quantity

Price per unit*

1 pcs.

4.9028 €

10 pcs.

4.3197 €

100 pcs.

3.7842 €

250 pcs.

3.6414 €

1000 pcs.

3.4034 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

NPN power transistor, BDV67C-T, COMSET

This is a silicon epitaxial base transistors mounted in TO-3PN. It is designed for audio output stages and general amplifier and switching applications.

Features

Compliance to RoHS

Technical specifications

	Ausführung	NPN
	Gehäuse	TO-3PN
	max. Temperatur	150 °C
	max.Spannung zwischen Kollektor und Basis Vcbo	140 V
	max.Spannung zwischen Kollektor und Emitter Vceo	120 V
	min. Temperatur	-65 °C
	Montage	THT
	Sättigungsspannung	2 V
	Verlustleistung VA (AC)	200 W
	Kollektorstrom	16 A
	Min Gleichstromverstärkung	1000 mA
