MJ4032 | COMSET Semiconductors

Name: Bipolar junction transistor, PNP, -16 A, -100 V, THT, TO-3, MJ4032
Brand: COMSET Semiconductors
SKU: 24S4002
Price: 5.37 EUR
Availability: InStock

Bipolar junction transistor, PNP, -16 A, -100 V, THT, TO-3, MJ4032

Order No.: 24S4002

EAN: 4099879029522

MPN:

MJ4032

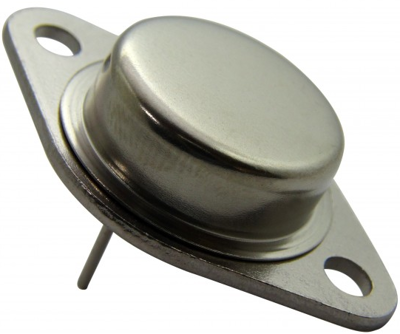

Image may differ

Key Specification:

Montage THT

Gehäuse TO-3

Ausführung PNP

Sättigungsspannung -2.5 V

Kollektorstrom -16 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.3669 € *

Available: 8 pcs.

Leadtime: On Request **

Total Price:

5.37 € *

Price list

Quantity

Price per unit*

1 pcs.

5.3669 €

10 pcs.

4.7243 €

100 pcs.

4.1412 €

200 pcs.

3.9865 €

1000 pcs.

3.6652 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

PNP power transistor, MJ4032, COMSET

The MJ4032 is a silicon epitaxial-base PNP power transistor in monolithic Darlington configuration and is mounted in Jedec TO-3 metal case. It is intented for use as output device in complementary general purpose amplifier applications.

Features

Compliance to RoHS

Technical specifications

	Ausführung	PNP
	Gehäuse	TO-3
	max. Temperatur	200 °C
	max.Spannung zwischen Kollektor und Basis Vcbo	-100 V
	max.Spannung zwischen Kollektor und Emitter Vceo	-100 V
	min. Temperatur	-65 °C
	Montage	THT
	Sättigungsspannung	-2.5 V
	Verlustleistung VA (AC)	150 W
	Kollektorstrom	-16 A
	Min Gleichstromverstärkung	1000 mA
