TIC126M-T | COMSET Semiconductors

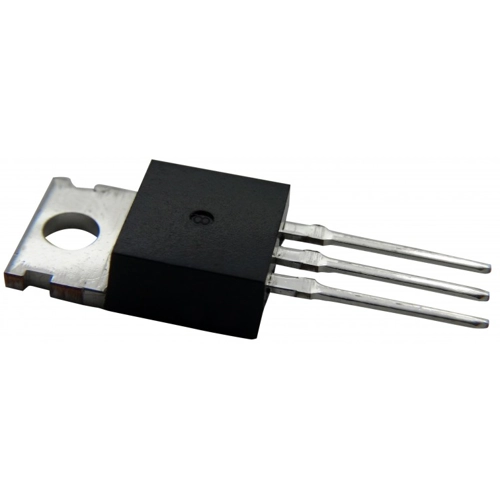

Thyristor, 600 V (RRM), TO-220, COMSET Semiconductors TIC126M-T
Order No.: 25S1850
EAN: 4099879032379
MPN:
TIC126M-T
Unit Price (€ / pc.)
2.9512 € *
Available: 34 pcs.
Leadtime: On Request **
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9512 €
10 pcs.
1.8445 €
50 pcs.
1.6184 €
250 pcs.
1.3923 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
**Subject to prior sale
Silicon controlled rectifier, TIC126M-T, COMSET
Silicon reverse-blocking triode thyristor
Features
- 12 A Continuous On-State Curren
- 100 A Surge-Curren
- Glass passivated wafer
- Compliance to ROHS
Technical specifications
| Number of pins | 3 | |
| Version | thyristor | |
| On-State Voltage | 1.4 V | |
| Gate trigger voltage | 1.5 V | |
| Gate trigger current | 20 mA | |
| Enclosure | TO-220 | |
| max. holding current | 40 mA | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Rated current | 7.5 A | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Voltage slew rates dV/dt | 100 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
