5710 7333 100 | COMUS

Solid state relay, 3-32 VDC, zero voltage switching, 24-280 VAC, 3 A, PCB mounting, 5710 7333 100

Order No.: 31G1336
EAN: 4099889360738
MPN:
5710 7333 100
WG A8 6D03Z
Series: WG A8 6D
5710 7333 100 COMUS Solid State Relays

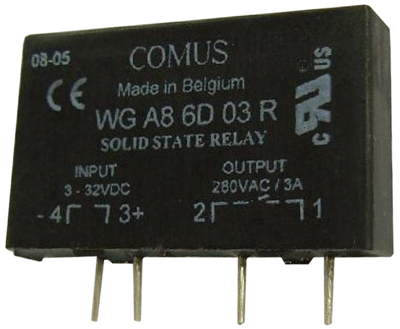

Image may differ
Unit Price (€ / pc.)
20.2181 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.22 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2181 €
10 pcs.
19.2304 €
50 pcs.
18.3260 €
150 pcs.
17.2550 €
300 pcs.
16.9099 €
*incl. VAT plus shipping costs
**Subject to prior sale

Solid state relay, 5710 7333 100, COMUS

No-voltage release, with triac output, with solder pins for PCB mounting; Continuous load current range: 0.05 to 3.0 A. Load voltage: 24 to 280 VAC. Control voltage: 3.0 to 32 VDC. Control current: max. 14 mA. Peak reverse voltage: 600 V. Leakage current: 5.0 mA rms. Surge current: 100 A. Peak load integral 2.0 s: 50 A. Forward voltage: 1.6 V. Response/release time: max. 11/11 ms. Operating frequency: 47 to 63 Hz. Test voltage control/load circuit: 4.0 kV. Operating temperatures: -20 to +80 °C. Certifications: UL.

Type: WG-A8 6D 03 Z, solid-state relay.

Technical specifications
LED display No
Assembly Leiterplattenmontage
Rated current 3 A
Switching Mode nullspannungsschaltend
Voltage V RRM (peak reverse voltage) 600 V
Voltage 24-280 VAC
Control Voltage 3-32 VDC
Logistics
Country of origin BE
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
