5750 8553 100 | COMUS

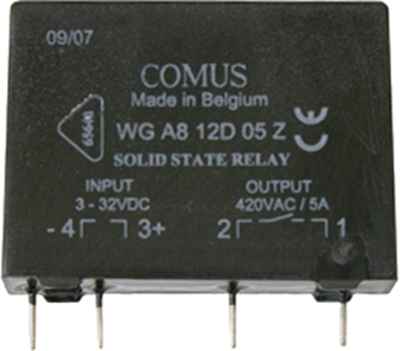

Solid state relay, 3-32 VDC, zero voltage switching, 24-480 VAC, 5 A, PCB mounting, 5750 8553 100
Unit Price (€ / pc.)
47.8261 € *
Available: 47 pcs.
Leadtime: On Request **
Total Price:
47.83 € *
Price list
Quantity
Price per unit*
1 pcs.
47.8261 €
5 pcs.
44.9463 €
15 pcs.
43.2327 €
50 pcs.
41.3168 €
150 pcs.
39.6032 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solid state relay, 5750 8553 100, COMUS
With alternistor output, with solder pins for PCB mounting; Load current: 5.0 A. Control voltage: 3.0 to 32 VDC. Control current: max. 22 mA. Load voltage: 24 to 480 VAC. Peak reverse voltage: 1200 V. Leakage current: 5.0 mA rms. Surge current: 120 A. Peak load integral 2.0 s: 72 A. Forward voltage: 1.6 V. Operating frequency: 47 to 63 Hz. Test voltage control/load circuit: 4.0 kV. Operating temperatures: -20 to +80 °C. Certifications: VDE.
With no-voltage release, type WG-A8 12D 05 Z.
Pick-up/release: 11/11 ms.
Type: WG-A8 12D 05 Z, solid-state relay.
Technical specifications
| Rated current | 5 A | |
| Voltage | 24-480 VAC | |
| Control Voltage | 3-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Switching Mode | nullspannungsschaltend | |
| Assembly | Leiterplattenmontage | |
| LED display | No |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
