6607 4804 900 | COMUS
Solid state relay, 3-32 VDC, zero voltage switching, 24-480 VAC, 90 A, PCB mounting, 6607 4804 900
Unit Price (€ / pc.)
65.6642 € *
Available: 14 pcs.
Leadtime: On Request **
Total Price:
65.66 € *
Price list
Quantity
Price per unit*
1 pcs.
65.6642 €
5 pcs.
61.7134 €
15 pcs.
59.3572 €
50 pcs.
56.7273 €
150 pcs.
54.3592 €
*incl. VAT plus shipping costs
**Subject to prior sale

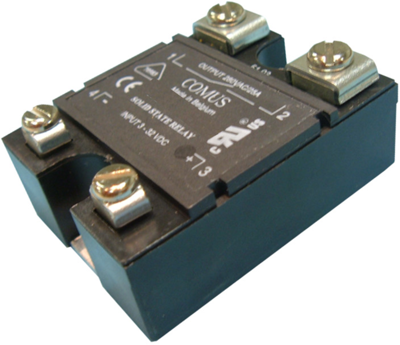

Solid state relay, 6607 4804 900, COMUS
No-voltage release, with thyristor output and overvoltage protection, for screw-on mounting. With screw terminals; Control voltage: 3.0 to 32 VDC. Control current: max. 22 mA. Load voltage: 24 to 480 VAC. Peak reverse voltage: 1200 V. Leakage current: 10 mA rms. Forward voltage: 1.6 V. Response/release time: max. 11/11 ms. Operating frequency: 47 to 63 Hz. Test voltage control/load circuit: 4.0 kV. Operating temperatures: -20 to +80 °C. Certifications: VDE, cULus. Note: Corresponding safety caps and heatsinks are described below the solid-state relays section.
Load current 90 A, type WG-480 D 90 Z.
Continuous load current range: 0.4 to 90 A. Surge current: 1090 A. Peak load integral 2.0 s: 5980 A.
Type: WG-480 D 90 Z, solid-state relay.
Technical specifications
| Rated current | 90 A | |
| Voltage | 24-480 VAC | |
| Control Voltage | 3-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Switching Mode | nullspannungsschaltend | |
| Assembly | Leiterplattenmontage | |
| LED display | No |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
