6607 4814 900 | COMUS
Solid state relay, 3-32 VDC, momentary switching, 48-480 VAC, 90 A, PCB mounting, 6607 4814 900
Unit Price (€ / pc.)
61.5706 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
3,078.53 € *
Price list
Quantity
Price per unit*
50 pcs.
61.5706 €
150 pcs.
59.0002 €
*incl. VAT plus shipping costs
**Subject to prior sale

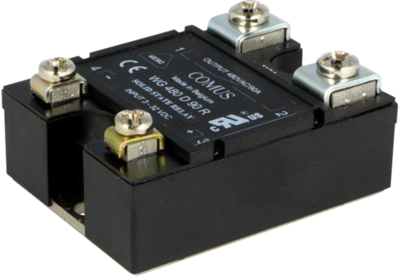

Solid state relay, 6607 4814 900, COMUS
Momentary action, with thyristor output and overvoltage protection, for screw-on mounting. With screw terminals; Control voltage: 3.0 to 32 VDC. Control current: max. 22 mA. Load voltage: 48 to 480 VAC. Peak reverse voltage: 1200 V. Leakage current: 10 mA rms. Forward voltage: 1.6 V. Response/release time: max. 0.1/11 ms. Operating frequency: 47 to 63 Hz. Test voltage control/load circuit: 4.0 kV. Operating temperatures: -20 to +80 °C. Certifications: VDE, cULus. Note: Corresponding safety caps and heatsinks are described below the solid-state relays section.
Load current 90 A, type WG-480 D 90 R.
Continuous load current range: 0.4 to 90 A. Surge current: 1090 A. Peak load integral 2.0 s: 5980 A.
Type: WG-480 D 90 R, solid-state relay.
Technical specifications
| LED-Anzeige | No | |
| Montage | Leiterplattenmontage | |
| Nennstrom | 90 A | |
| Schaltart | momentanschaltend | |
| Spannung V RRM (Spitzensperrspannung) | 1.2 kV | |
| Spannung | 48-480 VAC | |
| Steuerspannung | 3-32 VDC |
Download
Logistics
| Ursprungsland | BE |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
