13-503904 | CONEC

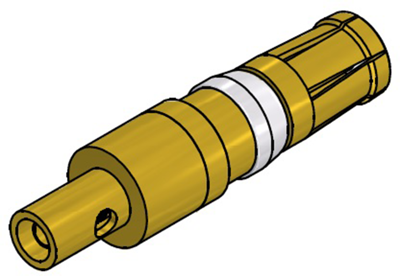

Name: Receptacle, solder connection, gold-plated, 13-503904
Brand: CONEC
SKU: 74F168
Price: 3.61 EUR
Availability: OutOfStock

Receptacle, solder connection, gold-plated, 13-503904

Order No.: 74F168

EAN: 4099889662955

MPN:

13-503904

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Kontaktanschluss Lötanschluss

Kontaktmaterial Kupferlegierung

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.6057 € *

Available: 0 pcs.

Leadtime: 7 Weeks **

Total Price:

3.61 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Coaxial center contact, 13-503904, CONEC

Coaxial Contact, Socket, Gold-plated, Copper alloy, Solder Connection

Technical specifications

	Ausführung	Buchsenkontakt
	Isolationsdurchmesser	1-3,5 mm
	Kontaktanschluss	Lötanschluss
	Kontaktmaterial	Kupferlegierung
	Kontaktoberfläche Anschlussbereich	vergoldet
	Kontaktoberfläche Steckbereich	vernickelt
	Kontaktoberfläche	vergoldet

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
