131A25019X | CONEC

Pin contact, solder connection, gold-plated, 131A25019X

Order No.: 55F5760
EAN: 4099889661019
MPN:
131A25019X

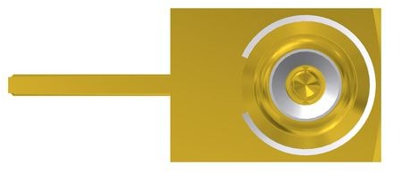

131A25019X CONEC Crimp Contacts Image 1

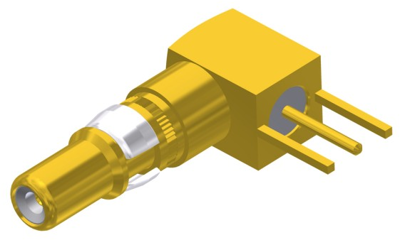

131A25019X CONEC Crimp Contacts Image 2

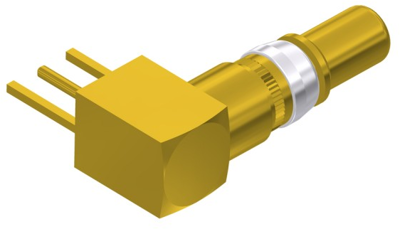

131A25019X CONEC Crimp Contacts Image 3
Image may differ
Unit Price (€ / pc.)
5.7596 € *
Available: 28 pcs.
Leadtime: 7 Weeks **
Total Price:
5.76 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7596 €
10 pcs.
5.2955 €
50 pcs.
4.8195 €
100 pcs.
4.3435 €
*incl. VAT plus shipping costs
**Subject to prior sale

Corresponding coax contact, type 13.

For 50 or 75 ohm. Quality grade 3. 3 angled solder pins. VSWR value to MIL-C-39012 at 1.2/1.5/2; .0 GHz: max 1.2/1.3/1.5. Insulation resistance: min 10 Gohm. Contact resistance: max 2.7 mohm. Operating voltage: 250 V. Dielectric strength: 750 V/50 Hz. Frequency range: 0 to 2.0 GHz. Operating temperatures: –55 to +125 °C.

Type: 131A25019X, pin contact, 50 ohm

Technical specifications
Version Stiftkontakt
Contact connection Lötanschluss
Contact material Kupferlegierung
Contact surface Connection range vergoldet
Contact surface mating area vernickelt
contact surface vergoldet
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
