131J20019X | CONEC

Pin contact, crimp connection, gold-plated, 131J20019X

Order No.: 55F5660
EAN: 4099889660920
MPN:
131J20019X
CONEC

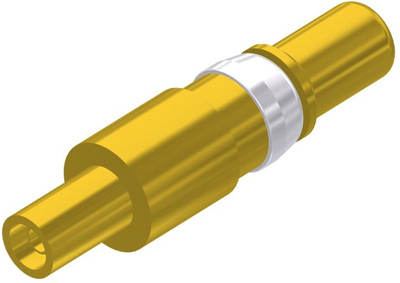

131J20019X CONEC Crimp Contacts Image 1

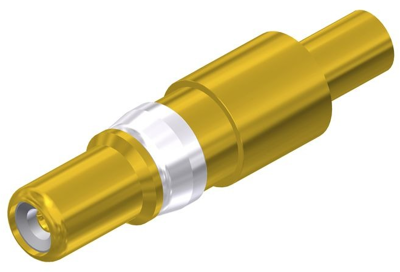

131J20019X CONEC Crimp Contacts Image 2
131J20019X CONEC Crimp Contacts Image 3
Image may differ
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.7009 €

Corresponding coax contact, type 13.

For 50 or 75 ohm, VSWR value to MIL-C-39012 at 1.2/1.5/2; .0 GHz: max. 1.2/1.3/1.5. Current rating: max. 2.0 A. Insulation resistance: min. 10 Gohm. Contact resistance: max. 2.7 mohm. Operating voltage: 250 V. Dielectric strength: 750 V/50 Hz. Frequency range: 0 to 2.0 GHz. Operating temperatures: –55 to +135 °C.

Type: 131J20019X, male contact, 50 ohm, RG 178/196/404

Technical specifications
Version pin contact
Insulation diameter 1.2-2.3 mm
Contact connection crimp connection
Contact material copper alloy
Contact surface Connection range gold-plated
Contact surface mating area nickel-plated
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
