131J30019X | CONEC

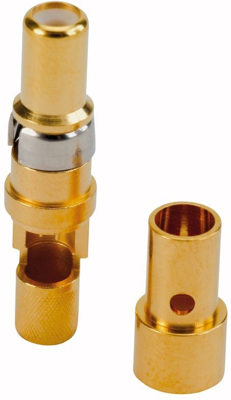

Pin contact, solder/crimp connection, gold-plated, 131J30019X
Order No.: 55F5668
EAN: 4099889660968
MPN:
131J30019X
Unit Price (€ / pc.)
5.6049 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
5.60 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6049 €
100 pcs.
4.9147 €
250 pcs.
4.7243 €
1000 pcs.
4.4268 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding coax contact, type 13.
For 50 or 75 ohm, VSWR value to MIL-C-39012 at 1.2/1.5/2; .0 GHz: max. 1.2/1.3/1.5. Current rating: max. 2.0 A. Insulation resistance: min. 10 Gohm. Contact resistance: max. 2.7 mohm. Operating voltage: 250 V. Dielectric strength: 750 V/50 Hz. Frequency range: 0 to 2.0 GHz. Operating temperatures: –55 to +135 °C.
Type: 131J30019X, male contact, 75 ohm, RG 179/187
Technical specifications
| Version | pin contact | |
| Insulation diameter | 0.88-3.85 mm | |
| Contact connection | solder/crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | gold-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
