132A25019X | CONEC

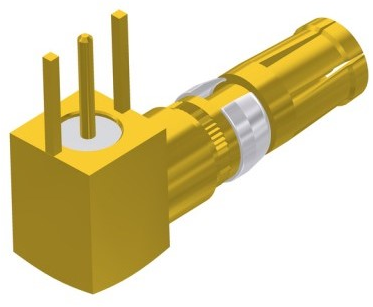

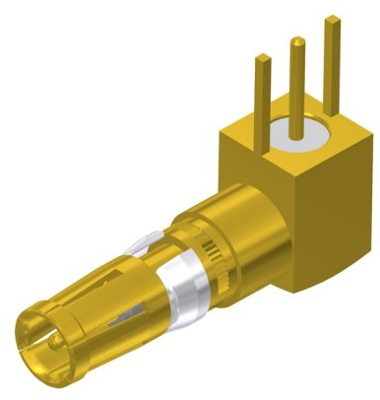

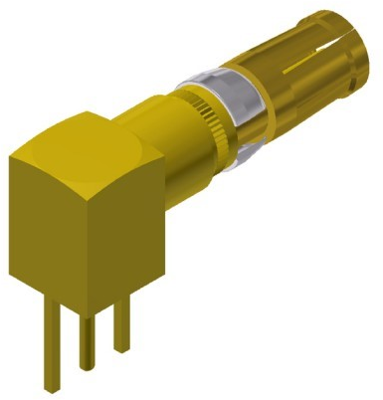

Receptacle, solder connection, gold-plated, 132A25019X
Order No.: 55F5764
EAN: 4099889661026
MPN:
132A25019X
Unit Price (€ / pc.)
3.4986 € *
Available: 0 pcs.
Leadtime: On Request **
Corresponding coax contact, type 13.
For 50 or 75 ohm. Quality grade 3. 3 angled solder pins. VSWR value to MIL-C-39012 at 1.2/1.5/2; .0 GHz: max 1.2/1.3/1.5. Insulation resistance: min 10 Gohm. Contact resistance: max 2.7 mohm. Operating voltage: 250 V. Dielectric strength: 750 V/50 Hz. Frequency range: 0 to 2.0 GHz. Operating temperatures: –55 to +125 °C.
Type: 132A25019X, Socket contact, 50 ohm
Technical specifications
| Version | receptacle | |
| Insulation diameter | 1-3.5 mm | |
| Contact connection | solder connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | gold-plated | |
| Contact surface mating area | nickel-plated | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
