132J20019X | CONEC

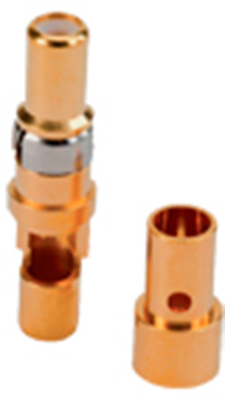

Receptacle, solder/crimp connection, gold-plated, 132J20019X
Order No.: 55F5662
EAN: 4099889660937
MPN:
132J20019X
Unit Price (€ / pc.)
5.2598 € *
Available: 26 pcs.
Leadtime: 6 Weeks **
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2598 €
10 pcs.
4.8314 €
50 pcs.
4.4030 €
100 pcs.
3.9627 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding coax contacts, type 13.
For 50 or 75 ohm, VSWR value to MIL-C-39012 at 1.2/1.5/2; .0 GHz: max. 1.2/1.3/1.5. Current rating: max. 2.0 A. Insulation resistance: min. 10 Gohm. Contact resistance: max. 2.7 mohm. Operating voltage: 250 V. Dielectric strength: 750 V/50 Hz. Frequency range: 0 to 2.0 GHz. Operating temperatures: –55 to +135 °C.
Type: Female contact, 132J20019X, 50 ohm, RG 178/196/404
Technical specifications
| Version | Buchsenkontakt | |
| Insulation diameter | 0,5-2,3 mm | |
| Contact connection | Löt-/Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface Connection range | vergoldet | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
