3005W5PXX99A10X | CONEC

D-Sub plug, 10 pole, 5W5, unequipped, straight, crimp connection, 3005W5PXX99A10X

Order No.: 55F5610
EAN: 4099889807417
MPN:
3005W5PXX99A10X

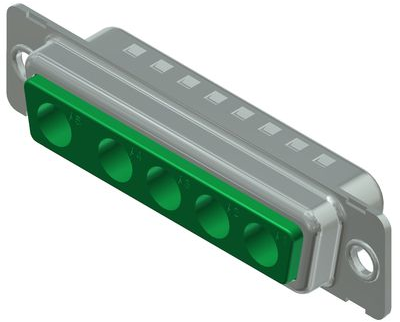

3005W5PXX99A10X CONEC D-Sub Connectors Image 1

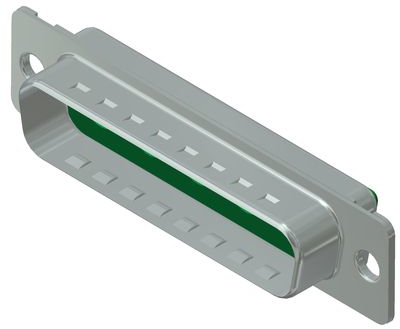

3005W5PXX99A10X CONEC D-Sub Connectors Image 2
3005W5PXX99A10X CONEC D-Sub Connectors Image 3
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Available: 24 pcs.
Leadtime: 8 Weeks **
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
25 pcs.
1.4399 €
100 pcs.
1.3328 €
250 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale

Combination Sub-D connector, type Conec 30.

Versatile connector for many applications, for signal, high-current and/or coax contacts, in 3 different housing sizes; Insulator: PBTP, GV. Housing: steel. Contact material: copper alloy. Contact surface: plated gold over nickel. Features of the signal contacts: maximum current : 5.0 A. Test voltage: 1000 V. Contact resistance per pair of contacts: max. 2.7 mohm. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 2.7 mohm. Operating voltage: 250 V. Operating temperatures: –55 °C to +125 °C. High-current and coax contacts are available on separate order.

Housings size 3, type 30.

For 5 special contacts (5W5), 4 special and 5 signal contacts (9W4) or 2 special and 15 signal contacts (17W2).

Type: 3005W5PXX99A10X, male connector 5W5

Technical specifications
Version Stiftleiste
Attachment (rear panel) Durchgangsloch
Additional parts unbestückt
Contact connection Crimpanschluss
Assembly gerade
Pole image 5W5
Pin number 10-polig
Type of locking Durchgangsloch
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
