3009W4PAM99A30X | CONEC

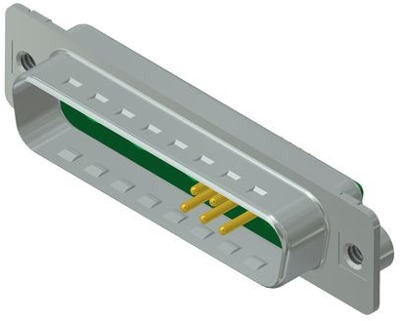

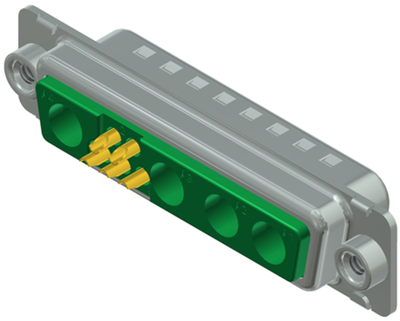

D-Sub plug, 13 pole, 9W4, partially equipped, straight, solder cup, 3009W4PAM99A30X
Order No.: 74F494
EAN: 4099889809404
MPN:
3009W4PAM99A30X
Unit Price (€ / pc.)
4.1174 € *
Available: 25 pcs.
Leadtime: On Request **
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.7842 €
50 pcs.
3.4510 €
100 pcs.
3.1059 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male Header, 3009W4PAM99A30X, CONEC
Combination D-Sub, Male header, 9W4, Solder cup, lower operating temperature -55 °C, electric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: Cable connection
- Pin number: 13-pole
- Pole image: Mixed Layout: 9W4
- Additional parts: Partially equipped
- Contact connection: Solder cup
Technical specifications
| Version | pin header | |
| Attachment (rear panel) | through hole | |
| Additional parts | partially equipped | |
| Contact connection | solder cup | |
| Assembly | straight | |
| Pole image | 9W4 | |
| Pin number | 13 pole | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
