3009W4PAU99G20X | CONEC

Name: D-Sub plug, 13 pole, 9W4, partially equipped, angled, solder pin, 3009W4PAU99G20X
Brand: CONEC
SKU: 74F495
Price: 4.90 EUR
Availability: OutOfStock

D-Sub plug, 13 pole, 9W4, partially equipped, angled, solder pin, 3009W4PAU99G20X

Order No.: 74F495

EAN: 4099889809411

MPN:

3009W4PAU99G20X

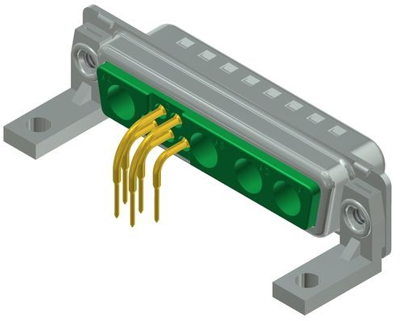

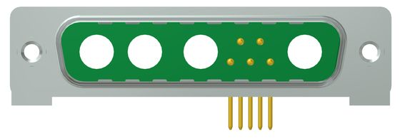

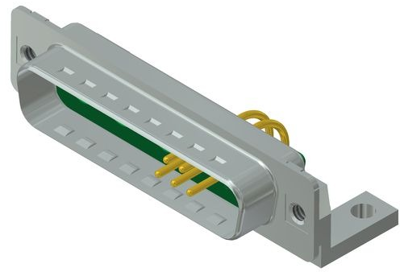

3009W4PAU99G20X CONEC D-Sub Connectors Image 3

Image may differ

Key Specification:

Polzahl 13-polig

Ausführung Stiftleiste

Kontaktanschluss Einlötstift

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.9028 € *

Available: 0 pcs.

Leadtime: 10 Weeks **

Add to Cart

Total Price:

4.90 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

D-Sub plug, 3009W4PAU99G20X, CONEC

Features

Metal shell: Steel
Contact material: Copper alloy
With threaded insert and metal bracket

Technical specifications

	Ausführung	Stiftleiste
	Befestigung (Rückseitig)	Kunststoffwinkel
	Bestückung	teilbestückt
	Kontaktanschluss	Einlötstift
	Montage	abgewinkelt
	Polbild	9W4
	Polzahl	13-polig
	Verriegelung	Gewindeeinsatz 4-40 UNC

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85366990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
