3013W3PAU99S90A | CONEC

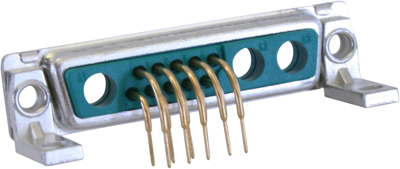

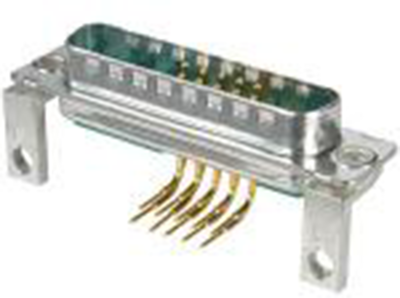

Name: D-Sub plug, 16 pole, 13W3, partially equipped, angled, solder pin, 3013W3PAU99S90A
Brand: CONEC
SKU: 74F499
Price: 3.28 EUR
Availability: OutOfStock

D-Sub plug, 16 pole, 13W3, partially equipped, angled, solder pin, 3013W3PAU99S90A

Order No.: 74F499

EAN: 4099889809459

MPN:

3013W3PAU99S90A

Image may differ

Key Specification:

Polzahl 16-polig

Ausführung Stiftleiste

Kontaktanschluss Einlötstift

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.2844 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Total Price:

3.28 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

D-Sub plug, 3013W3PAU99S90A, CONEC

Features

Metal shell: Steel
Contact material: Copper alloy
With riveted insert

Technical specifications

	Ausführung	Stiftleiste
	Befestigung (Rückseitig)	Kunststoffwinkel
	Bestückung	teilbestückt
	Kontaktanschluss	Einlötstift
	Montage	abgewinkelt
	Polbild	13W3
	Polzahl	16-polig
	Verriegelung	Durchgangsloch

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85366990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
