3017W2PAM99A30X | CONEC

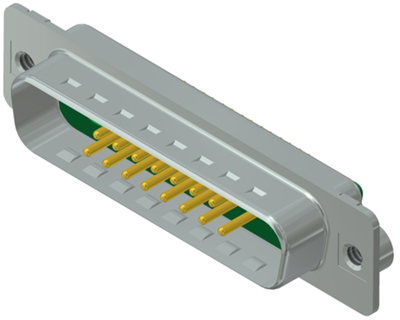

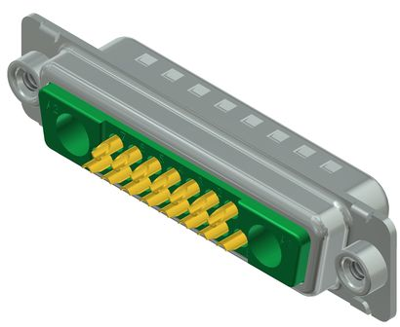

D-Sub plug, 19 pole, 17W2, partially equipped, straight, solder cup, 3017W2PAM99A30X
Order No.: 74F501
EAN: 4099889809473
MPN:
3017W2PAM99A30X
Unit Price (€ / pc.)
5.1765 € *
Available: 125 pcs.
Leadtime: On Request **
Total Price:
5.18 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1765 €
10 pcs.
4.7719 €
50 pcs.
4.3435 €
100 pcs.
3.9032 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male Header, 3017W2PAM99A30X, CONEC
Combination D-Sub, Male header, 17W2, Solder cup, lower operating temperature -55 °C, electric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: Cable connection
- Pin number: 19-pole
- Pole image: Mixed Layout: 17W2
- Additional parts: Partially equipped
- Contact connection: Solder cup
Technical specifications
| Version | pin header | |
| Attachment (rear panel) | through hole | |
| Additional parts | partially equipped | |
| Contact connection | solder cup | |
| Assembly | straight | |
| Pole image | 17W2 | |
| Pin number | 19 pole | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
