3017W2PAU99G20X | CONEC

D-Sub plug, 19 pole, 17W2, partially equipped, angled, solder pin, 3017W2PAU99G20X

Order No.: 74F502
EAN: 4099889809480
MPN:
3017W2PAU99G20X

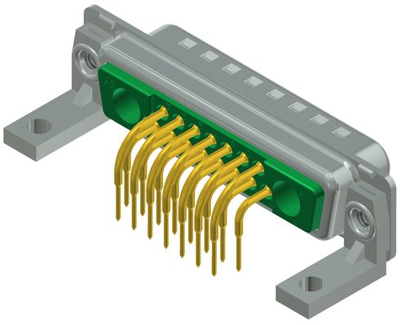

3017W2PAU99G20X CONEC D-Sub Connectors Image 1

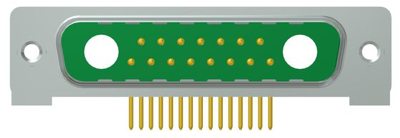

3017W2PAU99G20X CONEC D-Sub Connectors Image 2

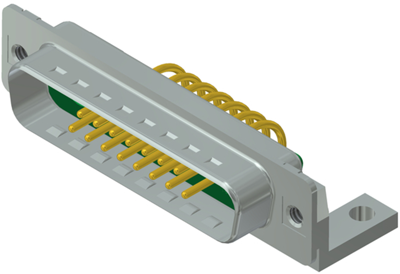

3017W2PAU99G20X CONEC D-Sub Connectors Image 3
Image may differ
Unit Price (€ / pc.)
5.9738 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
119.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
5.9738 €

Male Header, 3017W2PAU99G20X, CONEC

Combination D-Sub, Male header, 17W2, Solder pin, lower operating temperature -55 °C, electric strength signal 1000 V, protection class IP20

Technical Data

  • Assembly: PCB, angled
  • Pin number: 19-pole
  • Pole image: Mixed Layout: 17W2
  • Additional parts: Partially equipped
  • Contact connection: Solder pin
Technical specifications
Version Stiftleiste
Attachment (rear panel) Kunststoffwinkel
Additional parts teilbestückt
Contact connection Einlötstift
Assembly abgewinkelt
Pole image 17W2
Pin number 19-polig
Type of locking Gewindeeinsatz 4-40 UNC
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
