DZ2560 | Counttec
Three-phase energy meter, counter cross mounting, MID calibrated, (L x W x H) 155 x 68.9 x 216 mm, DZ2560
Order No.: 06N7853
EAN: 4026576025601
MPN:
DZ2560
2542992
Unit Price (€ / pc.)
74.851 € *
Available: 1 pcs.
Leadtime: On Request **

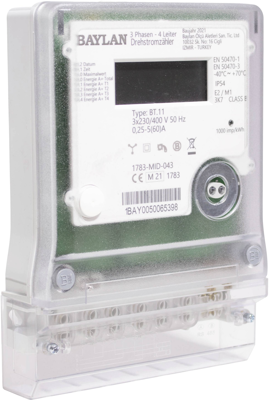

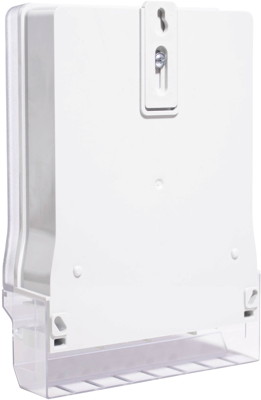

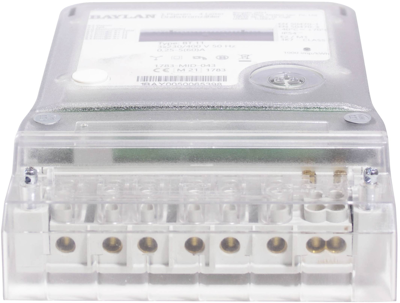

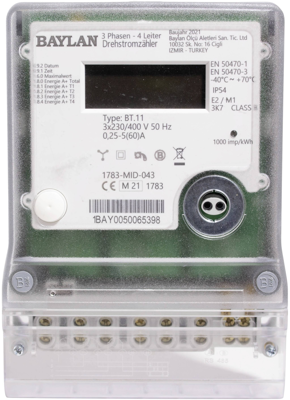

Three-phase meter, DZ2560, Counttec
Current meter from the Baylan BT. 1x is a modem-based, fully programmable electricity meter for recording the amount of electricity consumed. energy in the area of small consumption. The device is able to fulfil the requirements for metering accuracy class A or B. Its design was developed for connection to the TN-C type network. The electricity meter is equipped with a calibration LED with a pulse constant of 1,000 pulses/kWh. The electricity meter registers energy. The direction of the energy flow is indicated by two arrows.
Technical specifications
| Version | counter cross mounting, MID calibrated | |
| Width | 68.9 mm | |
| Weight | 1.1 kg | |
| Height | 216 mm | |
| Length | 155 mm | |
| Product type | three-phase energy meter |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 90283019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
