84137020 | CRYDOM
Solid state relay, 280 VAC, zero voltage switching, 3-32 VDC, 50 A, PCB mounting, 84137020
Unit Price (€ / pc.)
103.9227 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
103.92 € *
Price list
Quantity
Price per unit*
1 pcs.
103.9227 €
6 pcs.
97.6871 €
11 pcs.
95.6165 €
20 pcs.
93.5340 €
*incl. VAT plus shipping costs
**Subject to prior sale

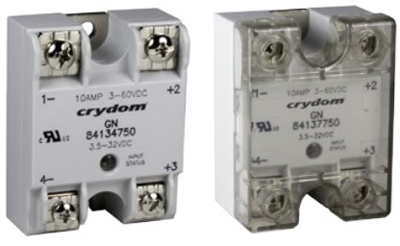

Solid state relay, 84137020, CRYDOM
Solid state relay with improved SEMS screw and washer and redesigned housing with anti-rotation barriers.
Features
- LED Input status indicator
- UL Approved, CE Compliant to EN60950-1
- EMC Compliant to level 3
Technical specifications
| LED-Anzeige | Yes | |
| Montage | Leiterplattenmontage | |
| Nennstrom | 50 A | |
| Schaltart | nullspannungsschaltend | |
| Spannung V RRM (Spitzensperrspannung) | 600 V | |
| Spannung | 3-32 VDC | |
| Steuerspannung | 280 VAC |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
