DRC3R40D400 | CRYDOM

Solid state relay, 400 VAC, 24 VAC, 7.6 A, DIN rail, DRC3R40D400

Order No.: 30G8584
EAN: 4099889359350
MPN:
DRC3R40D400
Series: DRC
DRC3R40D400 CRYDOM Solid State Relays
Image may differ
Unit Price (€ / pc.)
243.7120 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
731.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3 pcs.
243.7120 €

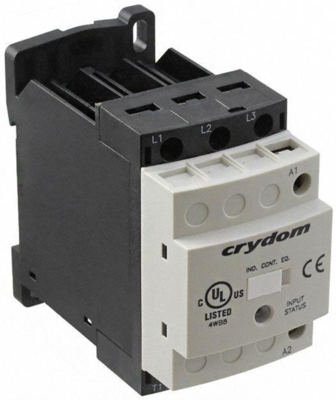

Reversing contactor, DRC3R40D400, CRYDOM

The DRC3R40D400 reversing contactor includes an interlock control that allows only off, forward and reverse operation in a safe mode while providing high space saving; it switches instantaneously upon application of the control voltage unless an instantaneous change of direction is commanded, then it will delay the direction change by 100msec in order to prevent simultaneous forward and reverse operations.

Features

  • Fits standard 35 mm DIN Rail
  • LED input status indicator
  • C-UL-US Listed, CCC Certified, IEC Rated, CE and RoHS Compliant, Horsepower Rated
  • Built-in overvoltage protection
Technical specifications
LED display Yes
Assembly DIN-Schiene
Rated current 7.6 A
Voltage V RRM (peak reverse voltage) 1.2 kV
Voltage 24 VAC
Control Voltage 400 VAC
Logistics
Country of origin MX
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
