CY62148EV30LL-55SXI | Cypress

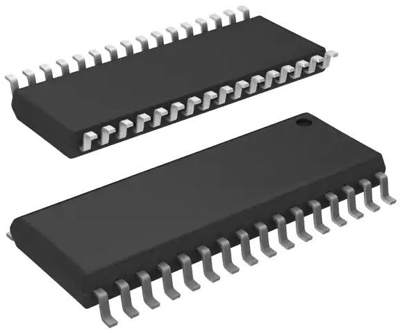

SRAM 512 kbit, SOIC-32, CY62148EV30LL-55SXI

Order No.: 64S2120
EAN: 4099891712143
MPN:
CY62148EV30LL-55SXI
Series: CY62
Cypress
CY62148EV30LL-55SXI Cypress Memory ICs
Image may differ
Unit Price (€ / pc.)
4.8790 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
5 pcs.
4.8790 €
50 pcs.
4.3435 €
*incl. VAT plus shipping costs
**Subject to prior sale

4-Mbit static RAM, CY62148EV30LL-55SXI, Cypress

CY62148EV30LL-55SXI is a high performance CMOS static RAM organized as 512K words by 8 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing more battery life in portable applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption.

Features

  • Very high speed: 45 ns
  • Ultra low standby power
  • Ultra low active power
  • Automatic power-down when deselected
  • Complementary metal oxide semiconductor (CMOS) for optimum speed and power
Technical specifications
Enclosure SOIC-32
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Voltage 2.2-3.6 V
Memory size 512 kbit
Technology SRAM
Access time 55 s
Logistics
Customs tariff number 85423231
MSL MSL 3
Original Packaging Tray with 250 pieces
Compliance
RoHS conform Yes
SVHC free Yes
