FM24C64B-GTR | Cypress

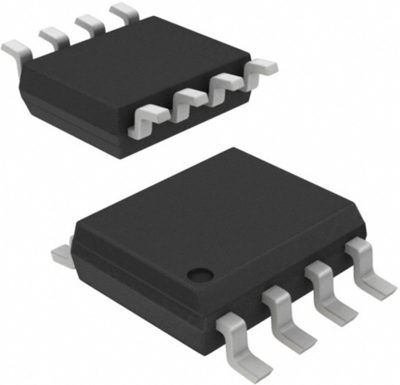

FRAM 64 kbit, SOIC-8, FM24C64B-GTR
Unit Price (€ / pc.)
2.1896 € *
Available: 3 pcs.
Leadtime: On Request **
Memory ICs, FM24C64B-GTR, Cypress
The FM24C64B is a 64-Kbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM 100 trillion read/write cycles or 100 million times more write cycles than EEPROM. The device uses the high-speed SPI bus, which enhances the high-speed write capability of F-RAM technology.
Features
- High-endurance 100 trillion read/writes
- Fast 2-wire Serial interface (I2C)
- Advanced high-reliability ferroelectric process
- Low power consumption
- Restriction of hazardous substances (RoHS) compliant
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 4.5-5.5 V | |
| Memory size | 64 kbit | |
| Clock frequency | 1 MHz | |
| Technology | FRAM | |
| Access time | 550 s |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85423290 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
