101336/1 | Deutronic

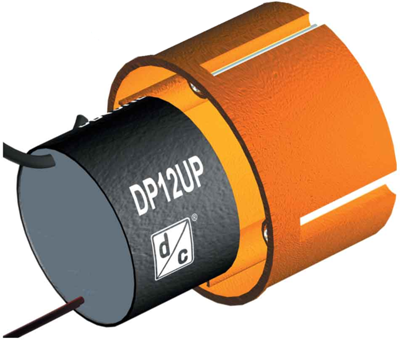

Flush-mount power module, 12 VDC, 1 A, 12 W, 101336/1
Unit Price (€ / pc.)
39.0201 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
39.02 € *
Price list
Quantity
Price per unit*
1 pcs.
39.0201 €
10 pcs.
35.1169 €
25 pcs.
31.6064 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flush mount power supply modules, type Deutronic DP.
With AC/DC extended-range input, reduced inrush current, long power failure backup, several modules can be operated on a single automatic circuit breaker; Safety class: 2. EMC to EN 61204-3, EN 55011 class B, EN 61000-6-2. Input voltage range: 100 to 240 VAC, 130 to 350 VDC. Operating temperatures: –25 to +70 °C. Efficiency: 85 %. Dimensions: 53 x 33 mm.
Output power 12/18 W, w. terminal block, type DP12../DP18.
Technical attributes (type, output voltage, output current): DP12UP-12-C, 12 VDC, 1.0 A
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 1 A | |
| Breite | 53 mm | |
| Eingangsspannungsbereich | 100-240 VAC | |
| Höhe | 33 mm | |
| Leistung | 12 W | |
| Wirkungsgrad | 85 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
