101337/1 | Deutronic

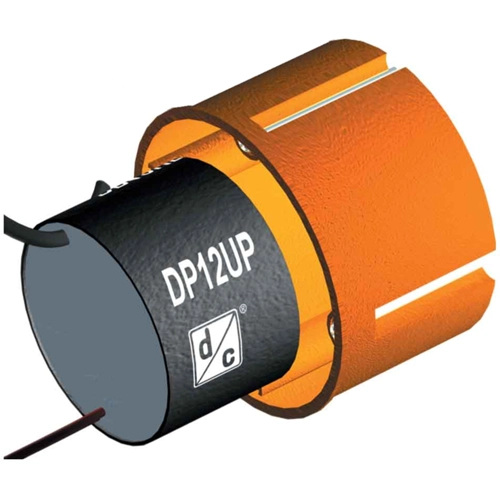

Flush-mount power module, 24 VDC, 500 mA, 12 W, 101337/1
Unit Price (€ / pc.)
41.8166 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
41.82 € *
Price list
Quantity
Price per unit*
1 pcs.
41.8166 €
6 pcs.
38.8059 €
25 pcs.
36.7234 €
50 pcs.
35.7119 €
100 pcs.
34.7123 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flush mount power supply modules, type Deutronic DP.
With AC/DC extended-range input, reduced inrush current, long power failure backup, several modules can be operated on a single automatic circuit breaker; Safety class: 2. EMC to EN 61204-3, EN 55011 class B, EN 61000-6-2. Input voltage range: 100 to 240 VAC, 130 to 350 VDC. Operating temperatures: - 25 to +70 °C. Efficiency: 85 %. Dimensions: 53 x 33 mm.
Output power 12 W, w. terminal block, type DP12...
Technical attributes (type, output voltage, output current): DP12UP-24-C, 24 VDC, 0.5 A
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 500 mA | |
| Width | 53 mm | |
| Input voltage AC | 100-240 VAC | |
| Height | 33 mm | |
| Power | 12 W | |
| efficiency | 85 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
