101337 | Deutronic

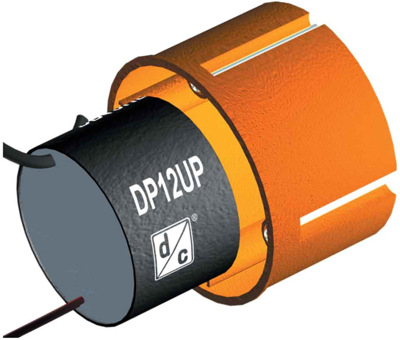

Flush-mount power module, 24 VDC, 500 mA, 12 W, 101337
Unit Price (€ / pc.)
39.1153 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
39.12 € *
Price list
Quantity
Price per unit*
1 pcs.
39.1153 €
6 pcs.
36.2950 €
25 pcs.
34.3434 €
50 pcs.
33.4033 €
100 pcs.
32.4632 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flush mount power supply modules, type Deutronic DP.
With AC/DC extended-range input, reduced inrush current, long power failure backup, several modules can be operated on a single automatic circuit breaker; Safety class: 2. EMC to EN 61204-3, EN 55011 class B, EN 61000-6-2. Input voltage range: 100 to 240 VAC, 130 to 350 VDC. Operating temperatures: -25 to +70 °C. Efficiency: 85 %. Dimensions: 53 x 33 mm.
Output power 12 W, w. output cable, type DP12..
Technical attributes (type, output voltage, output current): DP12UP-24, 24 VDC, 0.5 A
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 500 mA | |
| Breite | 53 mm | |
| Eingangsspannungsbereich | 100-240 VAC | |
| Höhe | 33 mm | |
| Leistung | 12 W | |
| Wirkungsgrad | 85 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
