101481 | Deutronic

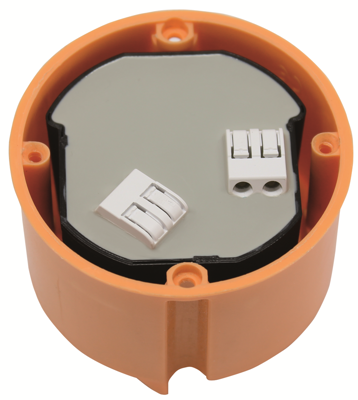

Flush-mount power module, 24 VDC, 1.25 A, 24 W, 101481
Unit Price (€ / pc.)
47.0645 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
47.06 € *
Price list
Quantity
Price per unit*
1 pcs.
47.0645 €
6 pcs.
43.6730 €
25 pcs.
41.3168 €
50 pcs.
40.1863 €
100 pcs.
39.0677 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flush mount power supplies, type Friwo UP.
Voltage controlled, current-limited; Standby losses: max. 0.3 W. Input voltage: 100 to 240 VAC. Frequency: 50 to 60 Hz. AC input/DC output: 150 mm cable. Efficiency: 75 % typically at full load. EMC: compliant with FCC 41, EN 55011, EN 55014, EN 55022/B, EN 55024, EN 61000. Degree of protection: IP 64. Operating temperatures: 0 to +40 °C.
Technical attributes (type, DC voltage current, typical ripple voltage (pp)): 1891767, 12 VDC, 1.0 A, 300 mV
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 1.25 A | |
| Eingangsspannungsbereich | 100-240 VAC | |
| Leistung | 24 W | |
| Tiefe | 42 mm | |
| Wirkungsgrad | 85 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
