110735 | Deutronic
DC/DC converter, 18-36 VDC, 50 W, 1 output, 5 VDC, 82 % efficiency, 110735
Unit Price (€ / pc.)
121.2967 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
121.30 € *
Price list
Quantity
Price per unit*
1 pcs.
121.2967 €
6 pcs.
114.0139 €
25 pcs.
108.9683 €
50 pcs.
106.5407 €
100 pcs.
104.1131 €
*incl. VAT plus shipping costs
**Subject to prior sale

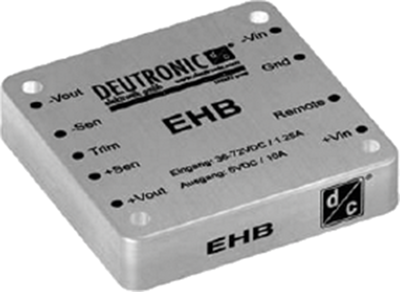

DC converters, type Deutronic EHB50-.

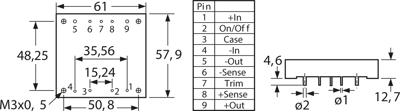

50 W DC/DC converter; with 2 : 1 input range, sustained short circuit-proof, electrical isolation, 5-sided metal package. Output tolerance: ±1.0 %. Residual ripple: 5.0 VDC 75 mVpp, 12/15 VDC 100 mVpp, 24 VDC 240 mVpp. Load fluctuation: ±0.2 %. input fluctuation: ±0.2 %. Switching frequency: 300 kHz. Operating temperatures: –40 to +100 °C. Package: aluminum. Dimensions: W 57.9, D 61, H 12.7 mm.
Technical attributes (type, input voltage, output voltage, output current): EHB50-24-5, input 18 to 36 VDC, output 5.0 VDC, 10 A
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 5 VDC | |
| Output current | 10 A | |
| Width | 57.9 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 12.7 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 61 mm | |
| Power | 50 W | |
| efficiency | 82 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85043129 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
