110867 | Deutronic

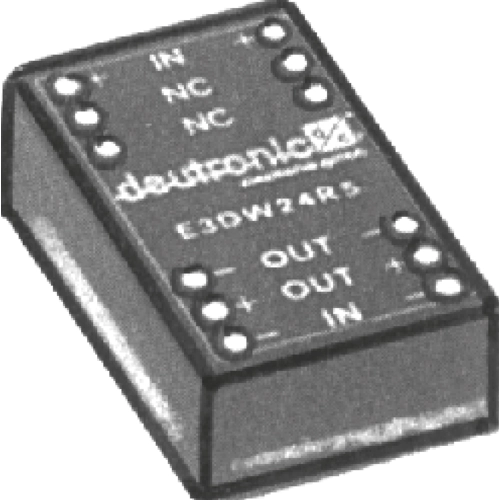

DC/DC converter, 18-36 VDC, 3 W, 2 outputs, ±15 VDC, 82 % efficiency, 110867
DC converters, type Deutronic Serie E3DW.

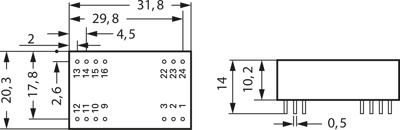

3.0 W DC/DC converter; with 2 : 1 extended-range input, DiL package for 24-pole DIL grid, with PI input filter and regulated outputs. Electrical isolation: 500 VDC. Sustained short circuit-proof. Output tolerance: ±2.0 %. Residual ripple: max. 1.0 %. Control error on load fluctuation: single ±0.5 %, or dual ±1.0 %. Control error on input fluctuation: ±0.5 %. Temperature coefficient: ±0.05 %/°C. Switching frequency: 100 kHz. Operating temperatures: –25 to +71 °C no derating. Package temperature: max. +100 °C. Package: plastic. Dimensions: 31.8 x 20.3 x 10.2 mm.
DiL packages, input 24 VDC/18 to 36 VDC, type E3DW.
Technical attributes (type, output voltage/output current): E3DW24R-15-15, 2 x OUT, ±15 VDC/±100 mA
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | ±15 VDC | |
| Ausgangsstrom | 100 mA | |
| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 500 V | |
| Länge | 31.8 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 82 % |
| Ursprungsland | TW |
| Zolltarifnummer | 85043129 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
