110881 | Deutronic

DC converter, 9-36 VDC, 3 W, 1 output, 5 VDC, 82 % efficiency, 110881

Order No.: 26K1252
EAN: 4099891297442
MPN:
110881
E3UW24R5
Series: ExU

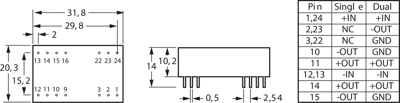

110881 Deutronic DC/DC Converters Image 1

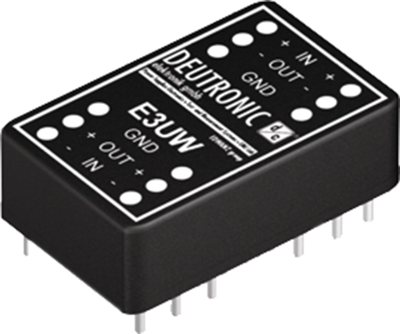

110881 Deutronic DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
20.2062 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
20.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
20.2062 €

DC converters, type Deutronic E3UW.

Matches 24-pole DiL grid; with extended-range input 4 : 1, PI input filter, controlled single or dual outputs, 500 VDC electrical isolation, sustained short circuit-proof. Output power: 3.0 W. Output tolerance: max. ±2.0 %. Residual ripple (20 MHz): max. 50 mVpp (5.0 V), max. 1.0 % (12/15 V). Temperature coefficient: +0.05 %/°C. Control error on input voltage fluctuation: ±0.5 %, on load fluctuation (single/dual): ±0.5/±1.0 %. Efficiency: up to 82 %. Switching frequency: min. 100 kHz. Test voltage: 500 VDC. Operating temperatures: –25 to +71 °C. Dimensions: L 31.8, W 20.3, H 10.2 mm.

Technical attributes (type, input voltage range, output voltage/current (± is 2 x OUT)): E3UW24R-5, input 9.0 to 36 VDC, output 5.0 VDC/600 mA

Technical specifications
Number of outputs 1
Output current 600 mA
Output voltage DC 5 VDC
Input voltage AC 9-36 VDC
Power 3 W
efficiency 82 %
Design DIP24
Isolation voltage 500 V
Length 31.8 mm
Width 20.3 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85043129
Original Packaging Stange mit 10 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
