110955 | Deutronic

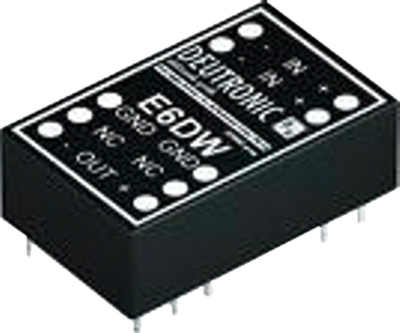

DC/DC converter, 18-36 VDC, 6 W, 1 output, 5 VDC, 82 % efficiency, 110955
DC converters, type Deutronic Serie E6DW.

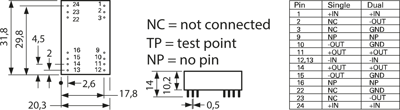

Matches 24-pole DiL grid; with extended-range input 2 : 1, PI input filter, controlled single or dual outputs, 500 VDC electrical isolation, sustained short circuit-proof. Output power: 6.0 W. Output tolerance: max. ±2.0 %. Residual ripple (20 MHz): max. 100 mVpp (5.0 V), max. 1.0 % (12/15 V). Temperature coefficient: +0.05 %/°C. Control error on input voltage/load fluctuation: ±0.5 %/single ±0.5 % or dual 1.0 %. Efficiency: to 82 %. Switching frequency: min. 150 kHz. Test voltage: 500 VDC. Operating temperatures: –25 to +71 °C. Dimensions: L 31.8, W 20.3, H 10.2 mm.
DiL packages, input 24 VDC/18 to 36 VDC, type E6DW.
Technical attributes (type, number of outputs, output voltage/output current (± double)): E6DW24R5, 1 x OUT, 5.0 VDC/1000 mA
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 1 A | |
| Bauform | DIP24 | |
| Breite | 20.3 mm | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 500 V | |
| Länge | 31.8 mm | |
| Leistung | 6 W | |
| Wirkungsgrad | 82 % |
| Ursprungsland | TW |
| Zolltarifnummer | 85043129 |
| Originalverpackung | Stange mit 10 Stück |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
