101133 | Deutronic

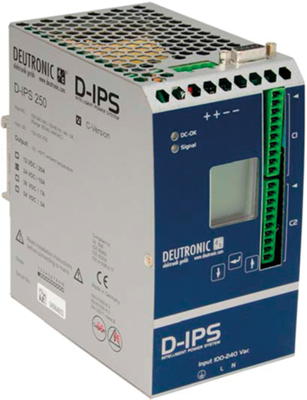

Power supply, 65 VDC, 2 A, 250 W, 101133
Order No.: 25K7812
EAN: 4099891284169
MPN:
101133
101133
Unit Price (€ / pc.)
673.8137 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
673.81 € *
Price list
Quantity
Price per unit*
1 pcs.
673.8137 €
6 pcs.
633.3775 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supplies, type Deutronic D-IPS..C.
For snap-on mounting on TS 35 rail, primary clock mode, variable, with RS-232 interface; Input voltage range: 100 to 240 VAC, 50 to 60 Hz, 130 to 350 VDC. Power factor: min. 0.98. Power failure backup: max. 20 ms. Open-circuit power: max. 1.5 A, residual ripple/Switching transients (20 MHz): 50/100 mVpp. Operating temperatures: –25 to +50 °C. Degree of protection: IP 20. Dimensions: 80 x 139 x 130 (D-IPS 1000C 260 x 139 x 130 mm).
Technical attributes (type, output voltage range, output current range, efficiency): D-IPS 250C-60, 0 to 65 V, 0 to 5.0 A, 91%
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 65 VDC | |
| Ausgangsstrom | 2 A | |
| Breite | 80 mm | |
| Eingangsspannungsbereich | 100-240 VAC | |
| Höhe | 130 mm | |
| Leistung | 250 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 139 mm | |
| Wirkungsgrad | 91 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85043180 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
