HDP26-24-31PE-L017 | DEUTSCH

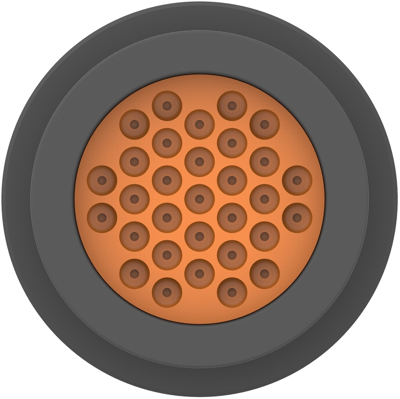

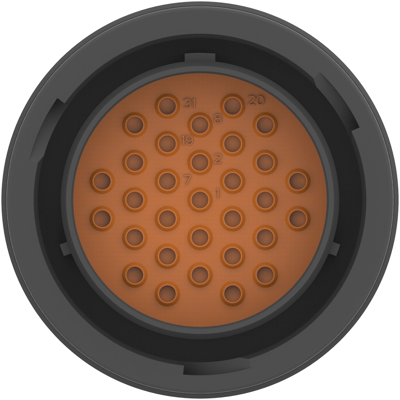

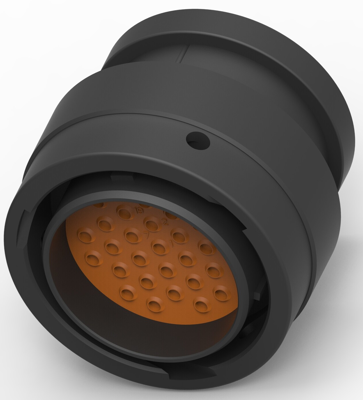

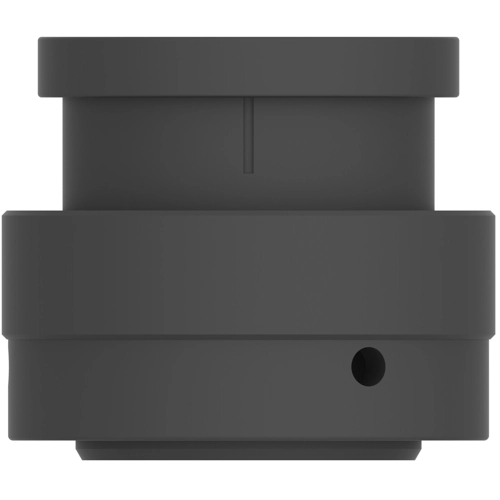

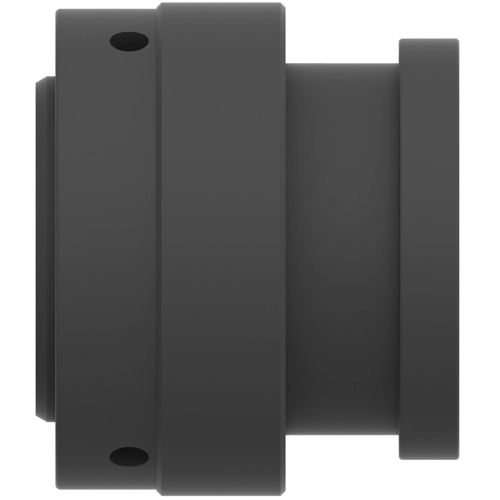

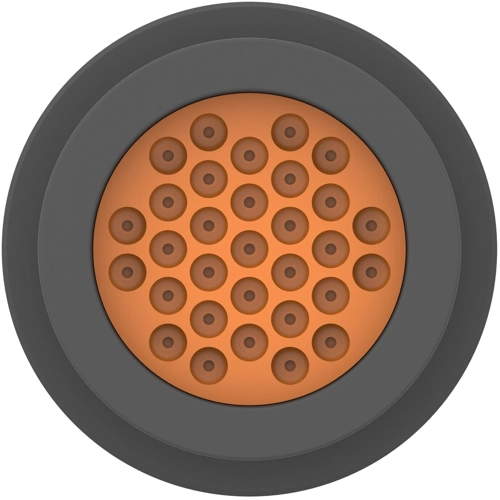

Socket, 31 pole, straight, black, HDP26-24-31PE-L017
Unit Price (€ / pc.)
55.5492 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
55.55 € *
Price list
Quantity
Price per unit*
1 pcs.
55.5492 €
10 pcs.
51.0986 €
25 pcs.
46.0054 €
50 pcs.
41.4001 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sealed connector, HDP26-24-31PE-L017, DEUTSCH
The HDP26-24-31PE-L017 is a heavy duty, environmentally sealed, multi-pin circular connector and is designed specifically for the truck, bus, and off-highway industry. This thermoplastic shell is suited for applications where chemicals can damage a connector housing.
Features
- Circular, aluminum housing
- Quick connect-disconnect bayonet coupling
- Single hole bulkhead mounting
- Rear insertion/rear removal contact system
Technical specifications
| Connection | Crimpanschluss | |
| Version | gerade | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Pin number | 31-polig | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85367000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
