0460-202-16141 | DEUTSCH

Name: Pin contact, 0.52-1.31 mm², AWG 20-16, crimp connection, nickel-plated, 0460-202-16141
Brand: DEUTSCH
SKU: 36P0014
Price: 1.21 EUR
Availability: InStock

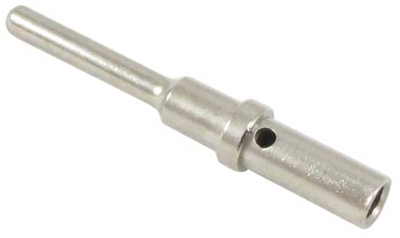

Pin contact, 0.52-1.31 mm², AWG 20-16, crimp connection, nickel-plated, 0460-202-16141

Order No.: 36P0014

EAN: 4099889641554

MPN:

0460-202-16141

Image may differ

Key Specification:

Ausführung Stiftkontakt

Leiterquerschnitt 0,52-1,31 mm²

AWG-Leiterquerschnitt AWG 20-16

Kontaktanschluss Crimpanschluss

Kontaktmaterial Kupferlegierung

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.2138 € *

Available: 1,154 pcs.

Available in 5 Days: 4,418 pcs.

Leadtime: 7 Weeks **

Total Price:

1.21 € *

Price list

Quantity

Price per unit*

1 pcs.

1.2138 €

10 pcs.

1.1067 €

50 pcs.

1.0234 €

100 pcs.

0.9401 €

500 pcs.

0.8449 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pin contact, 0460-202-16141, Deutsch

Sealable: No, Primary Locking Feature: On the Terminal, Crimp Type: Indent, Terminal Type: Pin, Mating Pin Diameter: 1.59 mm, Interface Plating: Nickel (Ni), Contact Termination Area Plating Material: Nickel (Ni), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 20 – 16 AWG, Wire Size: 0.52 – 1.31 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 1 mm², 1.25 mm², Wire Size Search: 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, Insulation Requirement: Uninsulated, Operating Temperature Range: -55 – 125 °C, Compatible With Wire Base Material: Copper.

Technical specifications

	Ausführung	Stiftkontakt
	AWG-Leiterquerschnitt	AWG 20-16
	Isolationsdurchmesser	1,56 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Kupferlegierung
	Kontaktoberfläche Anschlussbereich	vernickelt
	Kontaktoberfläche	vernickelt
	Leiterquerschnitt	0,52-1,31 mm²
