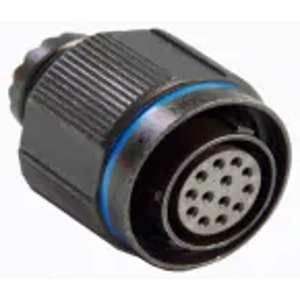

Circular connector, DTS26F21-41PA, Deutsch
Assembly Type: Electrical Connector, Connector System: Cable-to-Panel, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Circular connector, Factory Installed Backshell: No, Number of Positions: 41, Number of Power Positions: 0, Number of Signal Positions: 41, Contacts Preloaded: No, Voltage: 1800 Vrms, Feedthrough Type: No, Shell Plating Material: Electroless Nickel, Shell Base Material: Aluminum 6061-T6, Circular Connector Insulation Material Type: Hard Dielectric/Silicone, Hermetically Sealed: No, Contact Quantity (Size 20): 41, Contact Current Rating (Max): 7.5 A, Reverse Gender: No, Contact Layout Arrangement: 21 – 41, Circular Connector Contact Type: Pin, Panel Mount Feature: Without, Connector Mounting Type: Panel Mount, Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 21, Alignment Keyed: Clocking, Assembly Length: 31 mm, Wire Size: 0.2 -0.52 mm², Wire Size: 24 – 20 AWG, Fluid Resistance: Yes, Operating Temperature Range: -65 – 200 °C, Durability Rating: 500 Cycles, Circuit Application: Signal, Shielded: Yes, Packaging Quantity: 1, Position Locations Omitted: All
