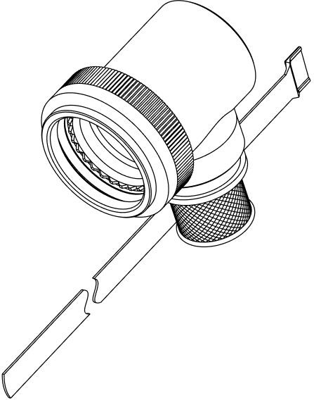

Circular connector, DTS26W15-15PA, Deutsch
Assembly Type: Electrical Connector, Connector System: Cable-to-Panel, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Circular connector, Factory Installed Backshell: No, Number of Positions: 15, Number of Power Positions: 1, Number of Signal Positions: 14, Contacts Preloaded: No, Voltage: 1800 Vrms, Feedthrough Type: No, Shell Plating Material: Cadmium, O.D., Shell Base Material: Aluminum 6061-T6, Circular Connector Insulation Material Type: Hard Dielectric/Silicone, Hermetically Sealed: No, Contact Quantity (Size 16): 1, Contact Current Rating (Max): 13 A, Reverse Gender: No, Contact Layout Arrangement: 15 – 15, Circular Connector Contact Type: Pin, Panel Mount Feature: Without, Connector Mounting Type: Panel Mount, Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 15, Alignment Keyed: Clocking, Assembly Length: 31 mm, Wire Size: 0.52 – 1.31 mm², Wire Size: 20 – 16 AWG, Fluid Resistance: Yes, Operating Temperature Range: -65 – 200 °C, Durability Rating: 500 Cycles, Circuit Application: Power & Signal, Shielded: Yes, Packaging Quantity: 1, Position Locations Omitted: All
