ZPF000000000019412 | DEUTSCH

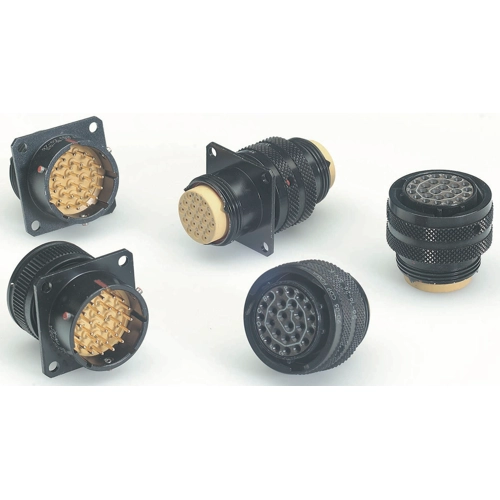

Socket, 26 pole, crimp connection, bayonet locking, straight, ZPF000000000019412
Order No.: 37P4429
EAN: 4099889716955
MPN:
ZPF000000000019412
FDBA 56-16-26 SY-K-A246
Unit Price (€ / pc.)
136.6358 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Circular connector, ZPF000000000019412, Deutsch
standard circular connector, protective cap
Features
- Triple wire sealing
- Interfacial seal ensured by compression of insert and static/dynamic seal
- Anti-friction washers for constant mating force
- Insert to shell sealing with potting
- Contacts individual sealing at coupling stage by compression of elastomer conical risers on hard insert
Technical specifications
| Version | Buchse | |
| Additional parts | bestückt | |
| Shell Material | Aluminium | |
| Contact connection | Crimpanschluss | |
| Cable cross-section | 0,2-0,52 mm² | |
| Orientation | gerade | |
| Pin number | 26-polig | |
| Type of locking | Bajonettverriegelung |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
