DTM13-12PA-R008 | DEUTSCH

Pin header, 12 pole, pitch 4.19 mm, angled, black, DTM13-12PA-R008

Order No.: 59F586
MPN:
DTM13-12PA-R008

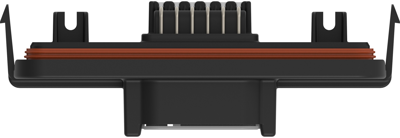

DTM13-12PA-R008 DEUTSCH PCB Connection Systems Image 1

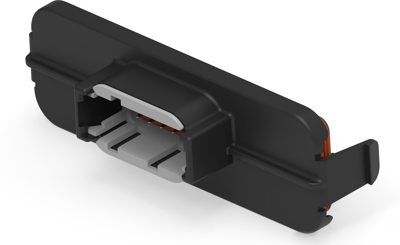

DTM13-12PA-R008 DEUTSCH PCB Connection Systems Image 2

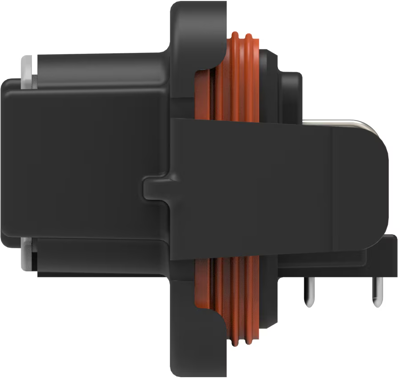

DTM13-12PA-R008 DEUTSCH PCB Connection Systems Image 3

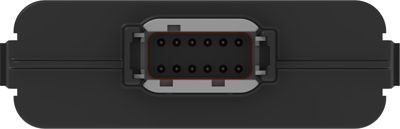

DTM13-12PA-R008 DEUTSCH PCB Connection Systems Image 4

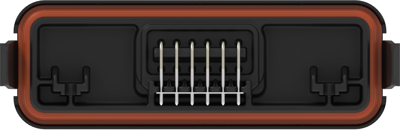

DTM13-12PA-R008 DEUTSCH PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
41.8047 € *
Available: 0 pcs.
Available in 5 Days: 24 pcs.
Leadtime: 8 Weeks **
Total Price:
41.80 € *
Price list
Quantity
Price per unit*
1 pcs.
41.8047 €
5 pcs.
39.2819 €
10 pcs.
36.5449 €
25 pcs.
33.6175 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB connector, DTM13-12PA-R008, DEUTSCH

PCB mount header, Right angle, Wire-to-Board, 12 Positions, 4.19 mm centerline, Fully Shrouded, Nickel (Ni), Through Hole-Solder, Hybrid.

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung Stiftleiste
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vernickelt
Nennspannung 250 V
Nennstrom 7.5 A
Orientierung abgewinkelt
Polzahl 12-polig
Rastermaß 4.19 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
