F/AS38P | Digisound
Piezo signal transmitter, 105 dB, 12 VDC, 35 mA, white, F/AS38P
Order No.: 36M320
EAN: 4099891541576
MPN:
F/AS38P
Unit Price (€ / pc.)
4.5577 € *
Available: 63 pcs.
Next delivery: 49 pcs. on 2025-03-03
Leadtime: 23 Weeks **
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.0103 €
100 pcs.
3.5224 €
250 pcs.
3.3796 €
1000 pcs.
3.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale

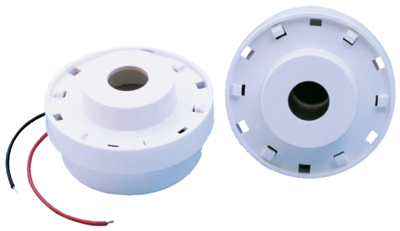

Piezo buzzers, type Digisound F/AS 38 P und F/AS 38 L.
For PCB mounting or for screw connection with hookup wires (100 mm), flame-proof housing; Operating voltage range: 1.0 to 13 VDC. Rated voltage: 12 VDC. Current consumption: 35 mA. Frequency: 2900 Hz (±500 Hz). Sound pressure level: 115 dB/10 cm. Sound mode: permanent. Operating temperatures: –20 to +60 °C. Weight: 21 g.
Type: F/AS 38 P, buzzer for PCB mounting
Technical specifications
| Version | piezo signal transmitter | |
| Colour | white | |
| Rated current | 35 mA | |
| Resonance frequency | 2900 Hz | |
| Sound pressure level | 105 db | |
| Voltage | 12 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85318040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
