F/HU110MP24B | Digisound

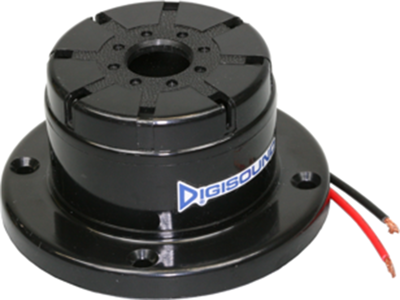

Siren, 112 dB, 100 VDC, 300 mA, black, F/HU110MP24B
Order No.: 32M906
EAN: 4099891541422
MPN:
F/HU110MP24B
Unit Price (€ / pc.)
32.7964 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
32.80 € *
Price list
Quantity
Price per unit*
1 pcs.
32.7964 €
10 pcs.
30.1903 €
25 pcs.
27.4771 €
50 pcs.
24.7282 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sirens, type Digisound F/HU 110.
Piezoelectric alarm siren for indoor and outdoor operation, with high reliability and long useful life; Degree of protection: IP 67. Weight: 100 g. Color: black.
For wall mounting, type F/HU 110 MS-Eurosound.
Sound mode: permanent or intermittent. Frequency: 2.8 to 3.2 kHz. Current consumption: 12/24 V: max. 300/200 mA. Operating temperatures: –20 to +80°C. Sound pressure level on 12/24 V: min. 100/110 dB/1.0 m.
Technical attributes (type, operating voltage/rated voltage, sound mode): F/HU 110 M, 15 to 30 V/Ns 24 VDC, intermittent
Technical specifications
| Version | siren | |
| Colour | black | |
| Rated current | 300 mA | |
| Resonance frequency | 2800 Hz | |
| Sound pressure level | 112 db | |
| Voltage | 100 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85318040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
