F/HU110P24VB-IP67 | Digisound

Siren, 110 dB, 24 VDC, 300 mA, black, F/HU110P24VB-IP67

Order No.: 32M764
EAN: 4099891541309
MPN:
F/HU110P24VB-IP67

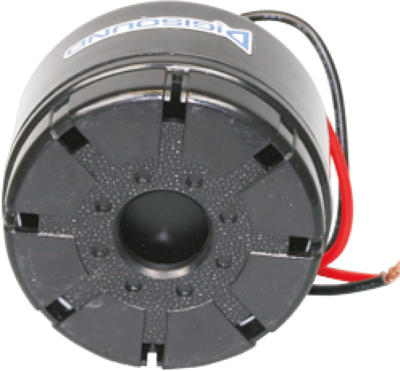

F/HU110P24VB-IP67 Digisound Acoustic Signal Transmitters Image 1
F/HU110P24VB-IP67 Digisound Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
14.3752 € *
Available: 716 pcs.
Leadtime: On Request **
Total Price:
14.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.3752 €

Sirens, type Digisound F/HU 110.

Piezoelectric alarm siren for indoor and outdoor operation, with high reliability and long useful life; Degree of protection: IP 67. Weight: 100 g. Color: black.

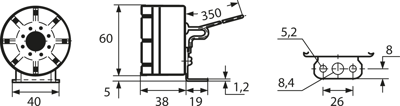

For bracket mounting, type F/HU 110.

Sound mode: permanent or intermittent. Frequency: 2.8 to 3.2 kHz. Current consumption: 12/24 V: max. 300/200 mA. Operating temperatures: –20 to +80°C. Sound pressure level on 12/24 V: min. 100/110 dB/1.0 m.

Technical attributes (type, operating voltage/rated voltage, sound mode): F/HU 110, 15 to 30 V/24 VDC, intermittent

Technical specifications
Version Sirene
Colour schwarz
Rated current 300 mA
Resonance frequency 2800 Hz
Sound pressure level 110 db
Voltage 24 VDC
Logistics
Country of origin CN
Customs tariff number 85318070
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei-Titantrioxid
