F/SWB12 | Digisound
Signal transmitter, 80 dB, 17 VDC, 15 mA, gray, F/SWB12
Order No.: 36M358
EAN: 4099891541699
MPN:
F/SWB12
Unit Price (€ / pc.)
6.5807 € *
Available: 44 pcs.
Leadtime: 23 Weeks **
Total Price:
6.58 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5807 €
10 pcs.
5.7953 €
100 pcs.
5.0813 €
250 pcs.
4.8909 €
1000 pcs.
4.5696 €
*incl. VAT plus shipping costs
**Subject to prior sale
Buzzers, type Digisound F/SWB und F/NCMB.
With electronic system, two designs; Sound mode: constant (type F/NCMB can be operated with and without triggering). Operating temperatures: –40 to +80 °C. Weight: 10 g. Features: long useful life and reliability, low current consumption. Penetrating sound, with harmonics.

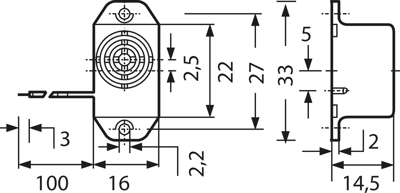

With mounting straps and 100 mm stranded hookup wires, type F/SWB.
Sound pressure level min. 80 db/0.1 m. Types SWB-06 and –12 are UL-listed.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/SWB 12, 7.0 to 17 V/12 VDC, 15 mA
Technical specifications
| Version | signal transmitter | |
| Colour | gray | |
| Rated current | 15 mA | |
| Resonance frequency | 400 Hz | |
| Sound pressure level | 80 db | |
| Voltage | 17 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
