DN-49206 | DIGITUS
19 inch wall enclosure, 12 U, (W x H x D) 540 x 595 x 400 mm, sheet steel, gray, DN-49206
Order No.: 70H946
EAN: 4016032493754
MPN:
DN-49206
Unit Price (€ / pc.)
106.1361 € *
Available: 0 pcs.
Available in 7 Days: 182 pcs.
Leadtime: 3 Weeks **

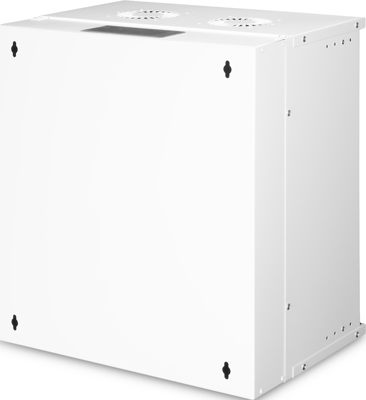

Wall mounting cabinet, DN-49206, DIGITUS

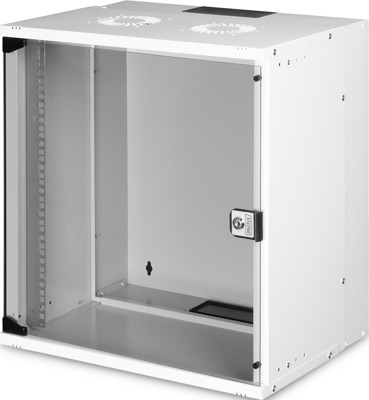

Whether in the home, office or for sub-distribution boards with limited space, with the compact 483 mm enclosure you can install your network wherever you want. The wall-mounted enclosure is equipped with a full glass door and a cable entry in the top and bottom. A pair of galvanized 483 mm (19") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. The cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The door hinges can be changed.
Features
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws

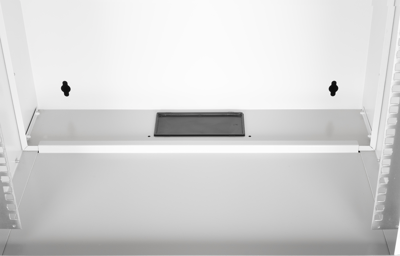

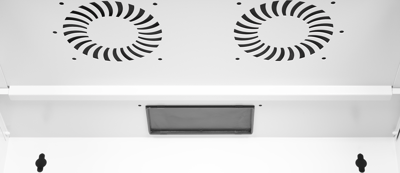

- Flexible cable routing options thanks to protected openings in the roof and floor

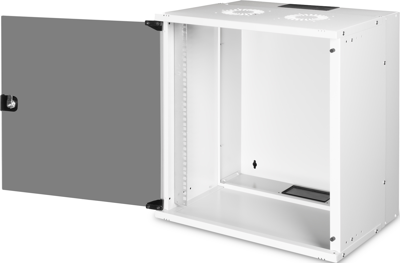

- Lockable safety glass door with 200° door opening angle
Technical specifications
| Version | Wandgehäuse | |
| Width | 540 mm | |
| Colour | grau | |
| Height | 595 mm | |
| Material | Stahlblech | |
| cutting pitch differential | 12 HE | |
| Depth | 400 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 94032080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
