DN-97601 | DIGITUS

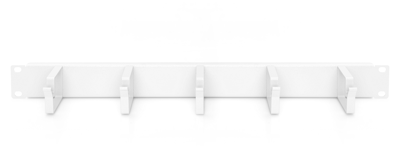

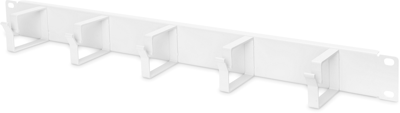

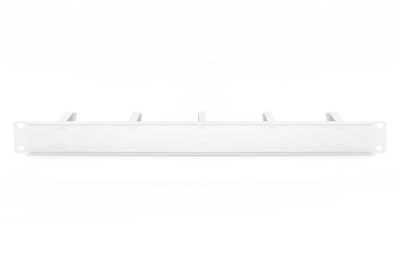

Cable routing panel, with cable guide bracket, sheet steel, (L x H x D) 482.6 mm x 44 x 60 mm, 1 U, light gray, for 19 inch cabinets, DN-97601
Order No.: 98F681
EAN: 4016032266440
MPN:
DN-97601
Unit Price (€ / pc.)
10.71 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Cable management panel, DN-97601, DIGITUS
The cable management panel is attached to the 483 mm (19") profile rails. Five cable management brackets enable easy, horizontal patch cable routing. Optimum cable management in your 483 mm (19") network or server enclosure is guaranteed.
Features
- Enables horizontal cable routing within the 483 mm (19") network or server enclosure
- 5 robust aluminum cable guide rings (40 x 60 mm) for patch cable routing
- Slim design that only takes up 1 height unit
- Ready for immediate use: Fastening material is supplied (cage nuts, screws, washers)
Technical specifications
| Version | mit Kabelführungsbügel | |
| Colour | lichtgrau | |
| Suitable for | 19 Zoll-Schränke | |
| Height | 44 mm | |
| Length | 482.6 mm | |
| Material | Stahlblech | |
| Product type | Kabelrangierpanel | |
| cutting pitch differential | 1 HE | |
| Depth | 60 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 73269098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
