DN-82120-1 | DIGITUS

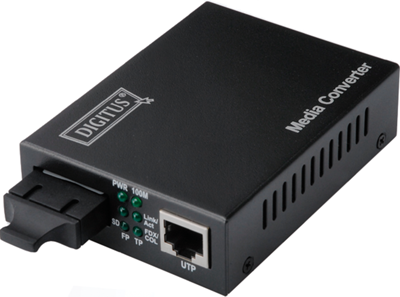

Media converter DN-82120-1, RJ45/SC, 10/100/1000Base-TX to 1000 Base-SX
Order No.: 13M232
EAN: 4016032293125
MPN:
DN-82120-1
Unit Price (€ / pc.)
83.1929 € *
Available: 0 pcs.
Available in 7 Days: 258 pcs.
Leadtime: 6 Weeks **
Gigabit media converters RJ45/SC, type Digitus DN-82120-1.
Converts wire-based network signals to FOC signals; Features: 10/100/1000Base-TX to 1000Base-SX, Multimode Dual Fiber, automatic cable detection (Auto MDI/MDI-X function), auto-detection of full and half duplex. mode. Connections: RJ45, SC Duplex. Range: max. 0.5 km. Wave length: 850 nm. Suitable FOC: 8.3/125 µm, 8.7/125 µm, 9.0/125 µm, 10/125 µm. Transmission power min./max.: –17 dBm/–12 dBm. Receiving sensitivity: –20 dBm. Data buffer: 2.0 MB. Input voltage: 5.0 VDC. Operating temperatures: 0 to +60 °C. Dimensions: 95 x 70 x 26 mm. Supplied with power adapter.
Type: DN–82120–1, media converter RJ45/SC
Technical specifications
| Connection | RJ45, SC-Duplex | |
| Colour | black |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
