DS-55506 | DIGITUS

Extender Set, DS-55506, DIGITUS

The HDMI Extender Set enables HDMI signal transmission over a distance of up to 70 m (4K/30Hz). The extender set supports UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) over a CAT 6/7/8 cable (60 m distance). Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. HDR, HDCP support as well as automatic EDID detection are also included as features. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to monitor the output to the receiver.

Features

• Automatic EDID detection
• HDR support
• Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable
• ESD protection
• Suitable for wall mounting

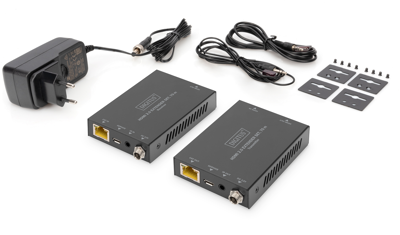

Scope of delivery

• 1 x Transmitter unit
• 1 x Receiver unit
• 1 x IR transmission cable (1.5 m)
• 1 x IR receiver cable (1.5 m)
• 1 x Power adapter (DC 12 V/1 A, 1.15 m)
• 4 x Mounting plate
• 1 x User manual
