DS-55512 | DIGITUS
4K HDBaseT™ HDMI KVM extender set, 70 m
4K HDBaseT HDMI KVM Extender Set, DS-55512, DIGITUS
The HDBaseT HDMI KVM Extender Set enables signal transmission over large distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended to up to 40 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. Bi-directional IR transmission and KVM functionality (USB 1.1) for connection to mouse and keyboard are also included as features.
Features
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connection to mouse and keyboard
- PoC (Power over Cable) - Only the unit requires an external power adapter
- IR transmission (bi-directional)
- Compact design for easy and flexible installation
- Sturdy metal housing

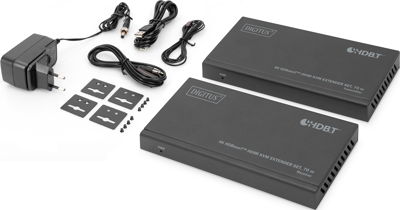

Scope of delivery
- Transmitter unit
- Receiver unit
- IR transmitter cable (1.5 m)
- IR receiver cable (1.5 m)
- Power supply unit (DC 12 V/1 A, 1.45 m)
- USB-B-A cable (1.5 m)
- 4 x mounting plate

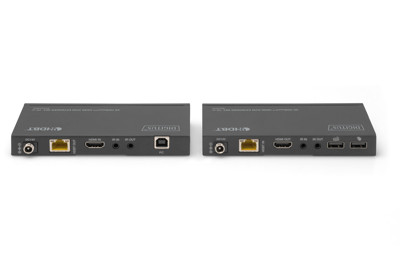

Connection | HDMI, USB-A, USB-B, RJ45 | |
Version | 4K HDBaseT HDMI, 70 m | |
Colour | schwarz | |
Product type | KVM Extender-Set |
Country of origin | CN |
Customs tariff number | 85176200 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
