DK-1P32-S-100 | DIGITUS
Charging cable, 10 m, type 2 to type 2, 1 phase, mode 3, 32 A, 230 V, DK-1P32-S-100
Order No.: 33P975
EAN: 4016032481492
MPN:
DK-1P32-S-100
Unit Price (€ / pc.)
247.282 € *
Available: 0 pcs.
Available in 7 Days: 9 pcs.
Leadtime: On Request **

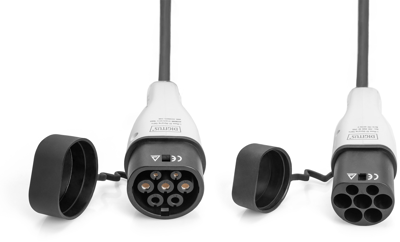

Charging cable, DK-1P32-S-100, DIGITUS
The DK-1P32-S-100 car charging cable allows you to easily connect any vehicle with type 2 plug to public charging stations or wallboxes with charging socket. The type 2 charging cables are certified according to EN 62196-1:2014, EN 62196-2:2017 and protection class IP55.
Features
- Easy plug and play in home wall box and also in public car charging stations

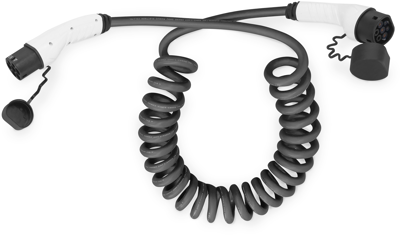

- Compact and easy to transport: Lightweight and space-saving spiral cable, which can be easily stowed in the boot or hung up in the garage and at the same time reduces contamination
- Safety and durability - high quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
- Connectivity - compatible with all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
Technical specifications
| Connection (1) | type 2 | |
| Connection (2) | type 2 | |
| Number of phases | 1 | |
| Colour | black | |
| Cable length | 10 m | |
| Loading mode | mode 3 | |
| Cable cross-section | 3 x 6.0 mm² + 2 x 0.5 mm² | |
| Rated voltage | 230 V | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
